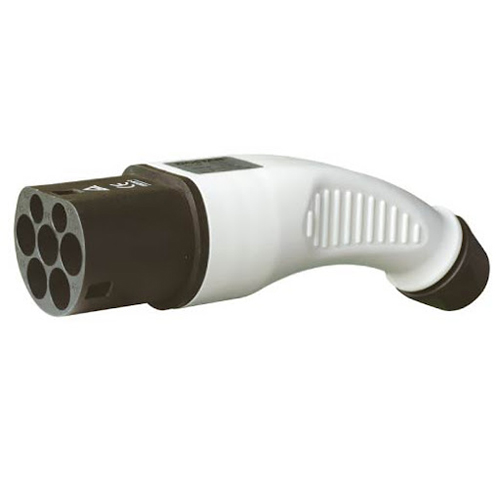

Electric Car Charging Station Plug Duosida Type 2 (Male), 32A, 3-phase

Plug for electric vehicle Type 2, 32A, (Male) (station side), 3-phase, without cable. Plug is designed to create your own charger by selecting the desired cable length and connectors.

Specifications:

EV connector type: IEC 62196, Type 2 (European), Mennekes, 7 contacts. Rated current: 32A. Operating voltage: 415V AC. Maximum charging power: 22kW (3-phase). Material: thermoplastic, fire resistance UL94 V-0. Cable contacts: copper alloy, silver plated. Dimensions of the applicable cable: 5x6mm² + 1x0.75mm² (3-phase). Number of contacts 7. Safety class: IP44. Operating temperature: -30 ° C ~ + 50 ° C. Certificates: CE, TUV. Color: black / white.

Warranty:

24 months
