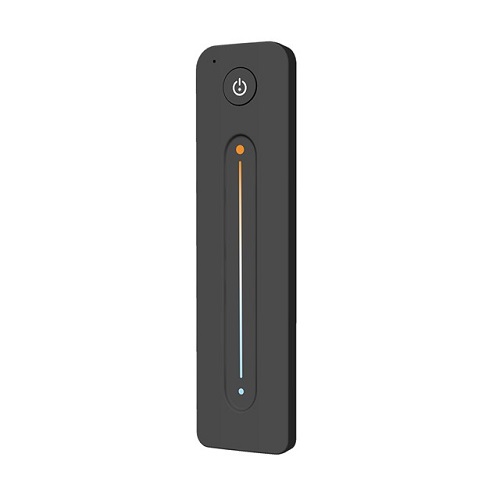

Skydance R12 2.4 GHz RF Remote Control for CCT LED Lighting, 1 Zone, Magnetic Holder

The Skydance R12 is an ultra-thin 2.4 GHz RF remote control for one zone of WW/CW or CCT LED lighting. The sensitive touch slider adjusts the colour temperature from warm through neutral to cool white. Holding the power button smoothly dims or brightens the light. The remote enters sleep mode automatically and wakes when the power button is pressed.

Control and compatibility

• Model: R12. Compatible controllers: Skydance V2 and V2-L.
• Number of zones: 1. Controlled lighting system: CCT. RF frequency: 2.4 GHz; range: up to 30 m in an open area.

Technical specifications

• Operating current: less than 5 mA; standby current: less than 10uA.
• Power supply: 3 V DC, 1 × CR2032 battery included. Controls: 1 touch slider and 1 button.
• Protection rating: IP20; operating temperature: -30~+55°C.
• Remote dimensions: 139 × 36 × 11 mm; magnetic-holder dimensions: 100 × 34 × 5 mm; weight: 40 g; colour: black.
• Certifications: CE, EMC, LVD, RED and RoHS. Warranty: 24 months.

Package contents

• R12 remote control, magnetic wall holder, 1 × battery, 2 × holder fixing screws, adhesive tape and user manual. The holder is surface-mounted with the screws or adhesive tape.
