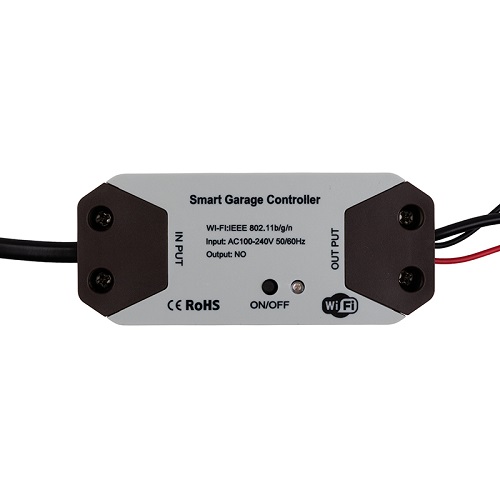

TUYA Smart Garage Door Opener, Wi-Fi

This Wi-Fi controller adds app-based operation and door-status monitoring to a compatible existing garage-door opener that uses a momentary push-button input.

Functions

• The Tuya Smart or Smart Life app provides open and close commands, live door status, notifications, schedules, countdown commands, operation history, automation and shared access.
• The supplied magnetic sensor reports whether the door is open or closed. A physical button on the controller can be used for local activation or testing.
• It connects to 2.4 GHz Wi-Fi, uses Bluetooth for initial pairing, and supports Amazon Alexa, Google Assistant and Tmall Genie.

Compatibility and technical data

• Confirm that the opener accepts a momentary normally-open contact and that its wiring is compatible before installation.
• Input: 100–240 V AC, 50/60 Hz; output: normally open (NO); Wi-Fi: IEEE 802.11 b/g/n at 2.4 GHz.
• Operating temperature: -10°C to +40°C; dimensions: 89 x 38 x 24 mm; weight: 50 g; listed conformity marks: CE and RoHS; warranty: 24 months.

In the box

• Garage-door controller with power cable, wired magnetic position sensor, magnet, mounting accessories and user manual.
